furnaces FOX series

Fox is a series of compact furnaces, with loading dimensions starting from 1050×2300 mm, designed for the needs of medium-small glassworks. Despite its small size, each machine of the Fox series has the most advanced features offered by technology in the sector, and guarantees high quality and cost-effectiveness even in the processing of small series.

Each oven of the Fox series limits energy consumption through the use of numerous exclusive Mappi solutions such as MHS (Multizone Heating System), AC (Advanced Cooling), ESS (Energy Saving System).

Now, thanks to a solid collaboration with Siemens, Mappi machines are, first in the entire glass industry, recognized as “Powered by Siemens”. This means that they are ready to implement all MindSphere applications, ready to enter the world of industry 4.0. ready to change the way of working in the glass industry, with full integration between the furnace and all production processes, from planning to quality reports. It’s a significant new leap into the future.

small in size,
great in results

  • CONTROL OF INDIVIDUAL HEATING ZONES INTERFACED WITH THERMOCOUPLES DATA
  • AUTOMATIC HEATING ZONE MANAGEMENT IN ORDER TO AVOID OVERHEATING
  • INDIPENDENT CONTROL OF THE CONVEYOR’S MOTORS FOR THE HEATING SECTION AND QUENCH SECTION
  • VENTILATOR IN POWERED BY DC MOTORS, WITH AN ELECTRONIC SPEED CONTROL, THAT PROVIDES CONSIDERABLE ENERGY SAVINGS
  • SOFTWARE COMPLETELY MANAGED BY SIEMENS PLC
  • TAB SYSTEM, WHICH ALLOWS MAPPI TO CHECK QUICKLY THE CONDITIONS OF THE FURNACE

  • GALLERY

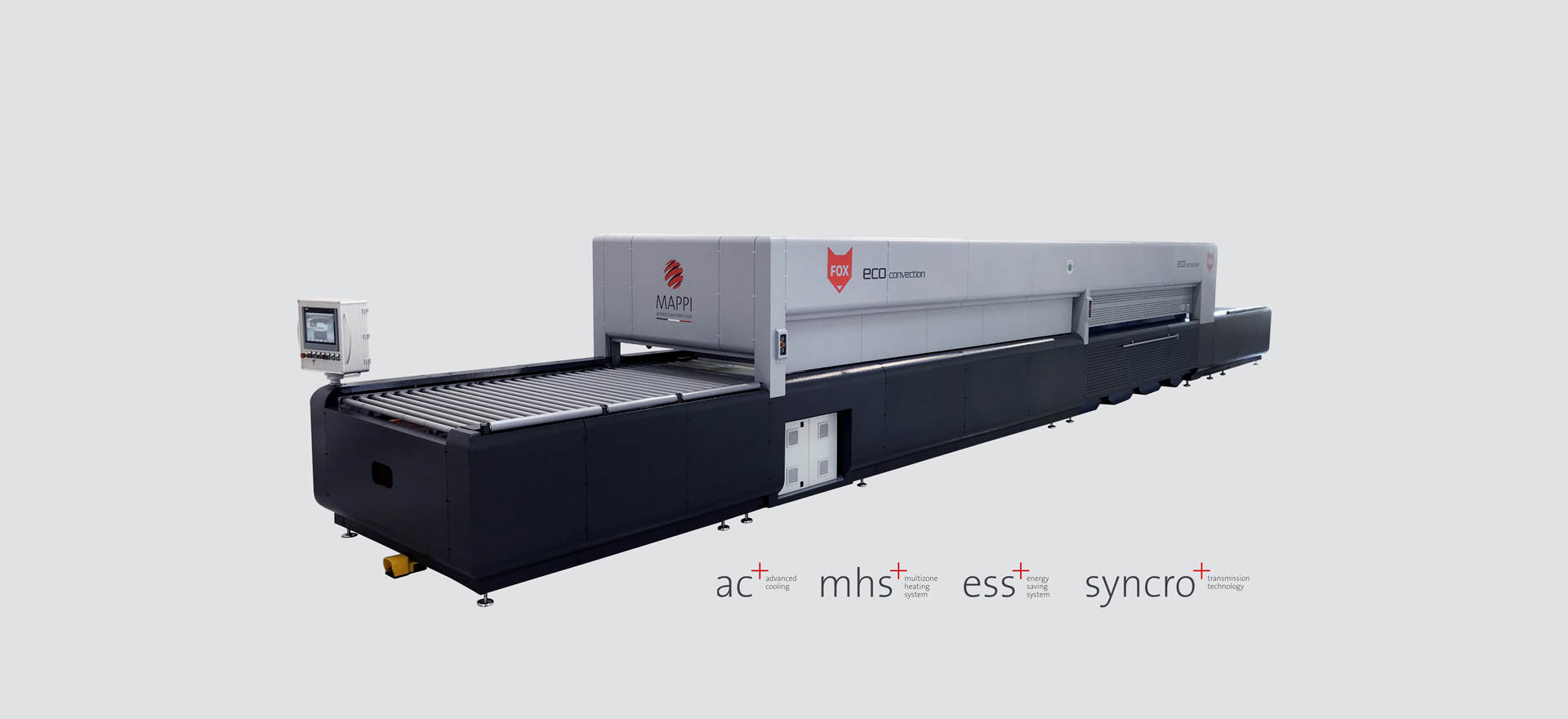

Mappi FOX
smarter (but smaller too)

Also our FOX series raises the bar in limiting consumptions through the use of coordinated MHS, ESS and ATI systems, a Mappi exclusive.

Fox is a series of compact ovens designed for the needs of medium-small glassware; ensures high quality and cost-effectiveness, even in small series machining. Each Fox includes all distinctive and proprietary innovation of Mappi technology.

Small heating modules, for precision heating and great flexibility, through a network of sensors.

A computerized system optimize consumption and reduce the peak of installed power.

An original design for the blowing system that allows a precise control while tempering.

Allows a perfectly syncronized movement of the ceramic rolls over the whole heating room.

Discover innovations

technical data

LOADING AREA1050x23001250x32001500x3200
mm1050x23001250x32001500x3200
inches41x9049x12660x126
PRODUCTIVITY | LOADS / HOUR
CLEAR GLASS
3mm262626
4mm252525
6mm171717
10mm101010
19mm555
LOW.E
3mm242424
4mm202020
6mm131313
8mm101010
10mm888
AVERAGE CONSUMPTION
kW/h115169233
PLANT DIMENSION
Lenght M/feet12 / 3916 / 5216 / 52
Width M/feet 2,3 / 7,53,5 / 11,54 / 13
Height M/feet2,3 / 7,52,3 / 7,52,3 / 7,5
